排水溝(統一型排水溝)
製品概要
島根県統一型の排水溝です。
分水溝・受台も用意しています。
呼び名 H x B |
参考質量 (kg) |
寸法(mm) | ||||||||||||||

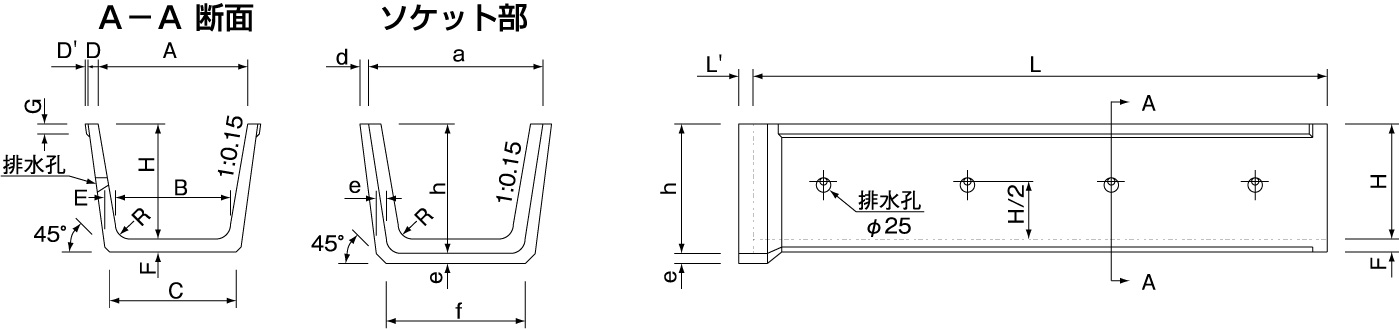

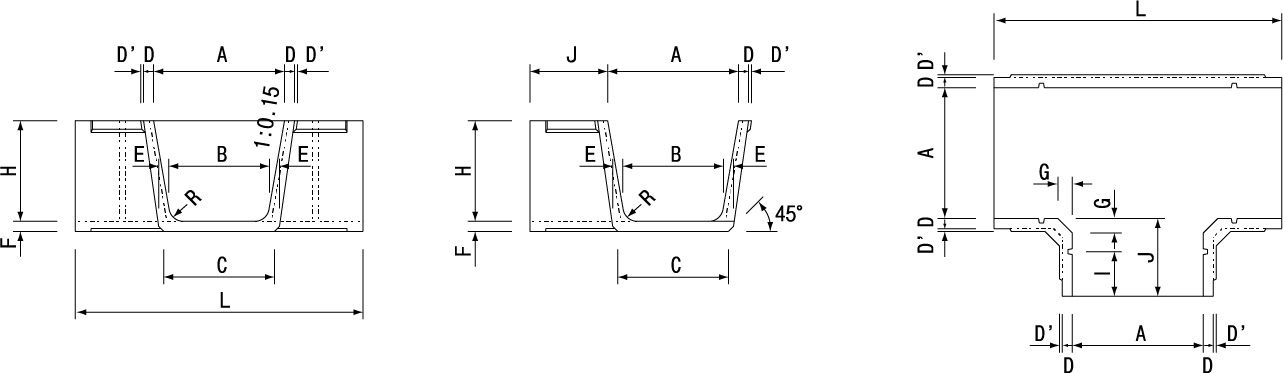

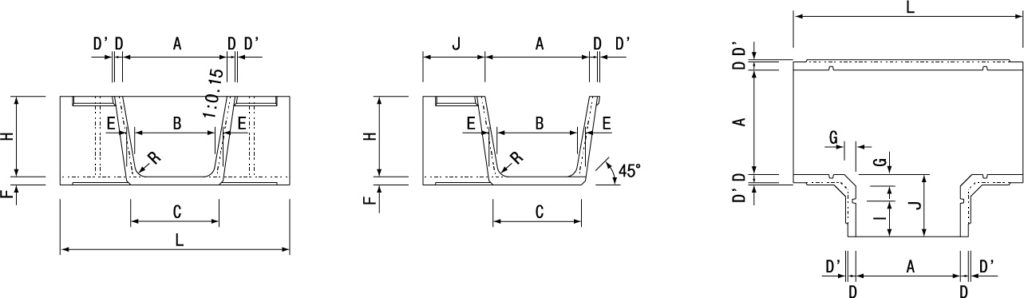

A | C | D | D’ | E | F | G | R | L | L’ | a | d | e | f | h | ||
150× 150 | 79 | 195 | 175 | 30 | 10 | 30 | 30 | 20 | 30 | 1,995 | 50 | 271 | 30 | 30 | 217 | 185 |
200× 200 | 114 | 260 | 235 | 30 | 10 | 35 | 35 | 25 | 30 | 1,995 | 50 | 336 | 30 | 35 | 276 | 240 |
250× 250 | 138 | 325 | 285 | 30 | 10 | 35 | 35 | 25 | 30 | 1,995 | 50 | 401 | 30 | 35 | 326 | 290 |
300× 300 | 164 | 390 | 335 | 30 | 10 | 35 | 35 | 30 | 40 | 1,995 | 50 | 466 | 30 | 35 | 375 | 340 |
350× 350 | 199 | 455 | 385 | 35 | 10 | 35 | 35 | 30 | 50 | 1,995 | 50 | 541 | 30 | 35 | 424 | 390 |
400× 400 | 260 | 520 | 440 | 35 | 10 | 40 | 45 | 35 | 50 | 1,995 | 50 | 606 | 30 | 35 | 482 | 450 |
400× 600 | 304 | 720 | 640 | 35 | 10 | 40 | 45 | 35 | 50 | 1,995 | 50 | 806 | 30 | 35 | 682 | 450 |
450× 450 | 304 | 585 | 495 | 35 | 10 | 45 | 45 | 35 | 50 | 1,995 | 50 | 671 | 35 | 35 | 543 | 500 |
500× 500 | 394 | 650 | 550 | 40 | 10 | 50 | 55 | 35 | 60 | 1,995 | 55 | 746 | 40 | 40 | 600 | 560 |
500× 600 | 421 | 750 | 650 | 40 | 10 | 50 | 55 | 35 | 60 | 1,995 | 55 | 846 | 40 | 40 | 700 | 560 |
600× 500 | 486 | 680 | 555 | 45 | 10 | 55 | 60 | 40 | 60 | 1,995 | 55 | 786 | 40 | 40 | 609 | 665 |
600× 600 | 515 | 780 | 655 | 45 | 10 | 55 | 60 | 40 | 60 | 1,995 | 55 | 886 | 40 | 40 | 709 | 665 |
800× 800 | 457 | 1,040 | 870 | 50 | 15 | 70 | 75 | 50 | 70 | 995 | 55 | 1,156 | 45 | 45 | 936 | 880 |
